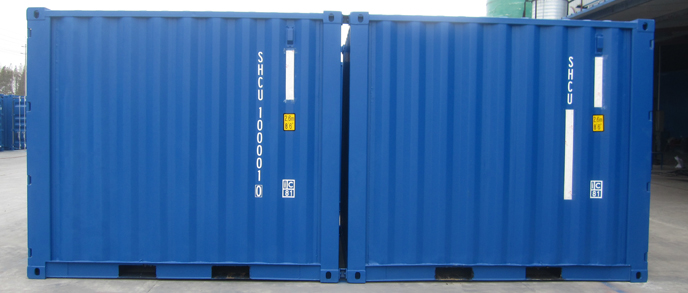

10FT Shipping Container

Dimensions and Ratings
1 Dimension
External Dimensions Internal Dimensions
Length 2,991 ( 0, -5 ) mm 2,841 ( 0, -5 ) mm
Width 2,438 ( 0, -5 ) mm 2,352 ( 0, -5 ) mm
Height 2,591 ( 0, -5 ) mm 2,393 ( 0, -5 ) mm

No part of the container will protrude beyond the external dimensions mentioned above.

Maximum allowable difference between two diagonals on any one of the following surface are as follow :

Roof, Bottom and Side Diagonals .………........   10 mm
Front and Rear Diagonals .......………..   10 mm

2 Door Opening

Width   2,342 (0, -5) mm
Height   2,280 (0, -5) mm

3 Fork Pocket

Width   .................. 360  mm
Height  ................... 116 mm
Center distance ....... 900 mm

4 Inside Cubic Capacity
15.95cu.m 　　　　563.3cu.ft

5 Rating

Maximum Gross Weight .......……...... 10,160 kg      22,400 lbs
Tare Weight (±2%)  …….........……... 1,300 kg 2,870 lbs
Maximum Payload  .……….....……... 8,860 kg  19,530 lbs
